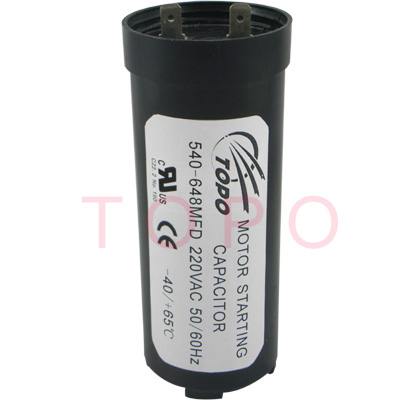

CD60 (US) Motor Start Capacitor
Item No: TP-CD60US-4
Request A Quote Now
Featureļ¼šSingle Fast On
Product Origin: China
Supply Ability: 300,000pcs/month
Date
Construction
Dielectric: aluminium foil & electrolyte paper
Bakelite plastic can

Features
High class insulating, high strength, uneasy broken and good sealed
good performance, easily for use, reliable and long in service life as well as the high and stable quality

Typical applications
Suitable for use in single phase A.C. motors

Terminals
Single Fast On
Double Fast On
Cable

Technical data and specifications
Reference standards
American ANSI /EIA -463
Operating temperature range
40-65 Centigrade
Rated capacitance CR
21 µF~1536 µF
Tolerance
0 ~ +20%
Rated voltage VR
110VAC~330VAC
Rated frequency FR
50/60Hz
Dissipation factor tan d
tgd<=0.10,  tgd<=0.15 (20 Centigrade,100Hz)
Surge Voltage between lugs
Applying 1.25 times rated voltage for 2 seconds
Surge Voltage between lug and case
2000VAC  10 seconds  non-broken down

Load Life
According to the difference working voltage
and capacitance;
Alternation 0.5-4 minute turn on 1 time for second, 12500~50000 times.
