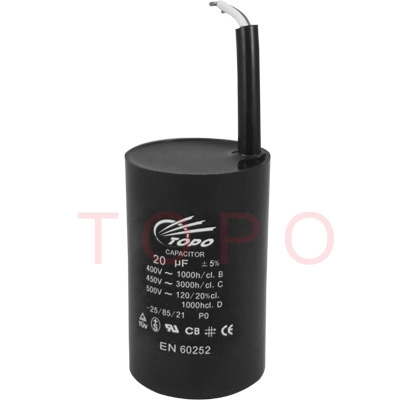

CBB60 Motor Run Capacitor
Item No: TP-CBB60-13
Request A Quote Now
Featureļ¼šTwin Core Cable
Product Origin: China
Supply Ability: 300,000pcs/month
Date
Construction
Dielectric: polypropylene film
Plastic & Round can
Dry type

Features
Self-heating properties
Low dissipation factor
P0 safety class to IEC 60252-1
High insulation resistance

Typical applications
For general sine wave applications,mainly as motor run capacitor

Terminals
Single Fast on
Double Fast on
Tinned Copper Wire
Twin Core Cable

Mounting parts (optional)
Threaded stud at bottom of can (M8, max.torque=5 Nm)
Fast fixation for mounting into a hole of f 8 mm

Technical data and specifications
 Reference standards
 IEC 60252-1
 Safety class according IEC 60252-1
 P0
 Life expectancy to IEC 60252-1
 3,000 h( C)~10,000 h(B)
 Rated capacitance CR
 1 µF~120 µF
 Tolerance
 +/-5%
 Rated voltage VR
 110VAC~500VAC
 Rated frequency FR
 50/60Hz

Maximum ratings
 Maximum permissible votage Vmax
 1.1*VR (VR=Rated voltage)
 Maximum permissible current Imax
1.3*IR (IR=Rated current)

Test data
 AC test voltage terminal to terminal VTT
 2*VR, 2s (routine test)
 2*VR, 60s (type test)
 Dissipation factor tan d
 <=0.002 (50Hz)

Climatic data
 Climatic category
 25/085/21 to IEC 60068-1
 Lower category Tmin
 -25 Centigrade
 Upper category Tmax
 85 Centigrade
 Damp heat test Ttest
 21 days
