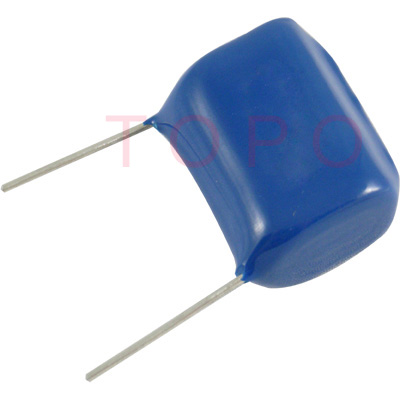

CBB62 Capacitor
Item No: TP-CBB62-1
Request A Quote Now
Featureļ¼šStraight wire leads, lead-free tinned
Product Origin: China
Supply Ability: 3,000,000pcs/month
Date
Construction
Dielectric:  polypropylene film,PP
Radial winding
Wound capacitor technology
Epoxy resin coating

Features
Highest possible contact reliability
Very high pulse strength
Self-healing properties

Typical applications
Smoothing
High-frequency AC loads
TV (flyback)

Terminals
Straight wire leads, lead-free tinned
Crimped wire leads, lead-free tinned

Climatic
Max. operating temperature: 100 Centigrade
Delivery mode
Bulk

Technical data and specifications


Operating temperature range


Max. operating temperature Top,max 100 Centigrade
Upper category temperature Tmax 100 Centigrade
Lower category temperature Tmin 55 Centigrade
Rated capacitance CR
0.001 µF~15µF
Tolerance
J(+-5%); K(+-10%)
Rated voltage VR
250VDC~1250VDC
DC test voltage
1.4*VR, 2s
Rated frequency FR
50/60Hz
Dissipation factor tan d
<=0.002 1KHZ

Insulation resistance
CR<=0.33µF VR<=100V >=50000MΩ
VR>100V >=100000M
CR>0.33µF VR<=100V >=15000s
VR>100V >=30000s
